Jinzhou City Shitan Machinery Equipment CO. LTD.
Ana sayfa ÜrünlerPnömatik Sondaj Rig

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

Bay Zhu güvenmeye değer, iyi bir takımı var, bize iyi servis ve güvenilir kalite kablosu sağlıyorlar.

—— Aaron

Bay Zhu bize iyi fiyat ile Su Sondajı Rig sağlar. teşekkür ederim.

—— Julien

Ben sohbet şimdi

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

Büyük resim :  ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: JINZHOU SHITAN
Sertifika: ISO/CE/COC
Model numarası: ST-300
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 Takım
Fiyat: Pazarlık edilebilir
Ambalaj bilgileri: Standart İhracat Paketi
Teslim süresi: 7-10 gün
Ödeme koşulları: T/T, Western Union
Yetenek temini: Yılda 2000 set
Detaylı ürün tanımı
Ürün adı: Derin delik delme ekipmanları Model numarası: ST 200
Makine Tipi: Su Borewell Sondaj Teçhizatı Sertifika: ISO/CE/COC
Delik: 100-350 mm Sondaj derinlikleri: 200 metre
Durum: YENİ Sondaj çubuğu: 76/89mm
Garanti: 12 ay Rotasyon torku: 7500nm, 983 nm, 4200n.m, 3400mm
Satış sonrası hizmet: Video Desteği Renk: Sarı, kırmızı ve mavi
Vurgulamak:

ST 200 pneumatic water well drilling rig

,

large borehole diameter drilling rig

,

10 inch water well rig

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch
ST 200 Pneumatic Drilling Rig for Rocky Layer Blasting Borehole. Professional-grade borehole drilling equipment designed for deep underground operations in rocky layers, with capability to drill up to 200 meters.
Key Features
  • Designed for deep well drilling up to 200 meters
  • Pneumatic drive system for powerful performance
  • Suitable for hydrogeological exploration and water well drilling
  • Excellent adaptability for complex geological conditions
  • ISO certified with 12-month warranty
Product Specifications
Attribute Value
Model Number Crawler-mounted drilling rig
Machine Type Drilling Equipment
Certification ISO
Hole Diameter Customized (90-300mm)
Drilling Depths 200 meters
Condition New
Weight 8.9 T
Warranty 12 months
Rotation Torque 7500Nm, 983 N.m, 4200N.m
Air Consumption 16-30 M3/min, 20-100m3/min
Color Options Yellow, Red and Blue
Technical Details
  • Power: Diesel
  • Dimensions: 6400MM × 2250MM × 2700MM
  • Weight: 5800KG
  • Rotary Speed: 0-90rpm
  • Travelling Speed: 0-2.5km/h
  • Drilling Rods: 76×2m + 76×3m
Equipment Components
  • Pneumatic System: Provides power to drive the rotation and impact of the drill bit
  • Drill Rod System: Multiple sections of drill rods for gradual penetration
  • Drill Bit: Various types available based on geological conditions
  • Control System: Adjusts drilling parameters like rotation speed and impact force
  • Debris Removal System: Uses compressed air or mud to keep borehole clean
Safety Precautions
  • Operators must undergo professional training
  • Wear safety helmets, gloves, and other protective equipment
  • Inspect surrounding environment before operation
Product Images
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 0

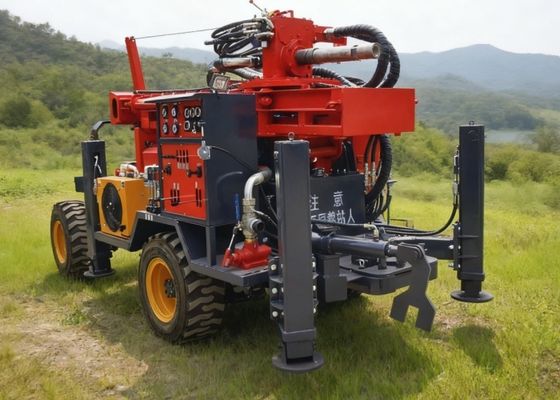

Front View
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 1

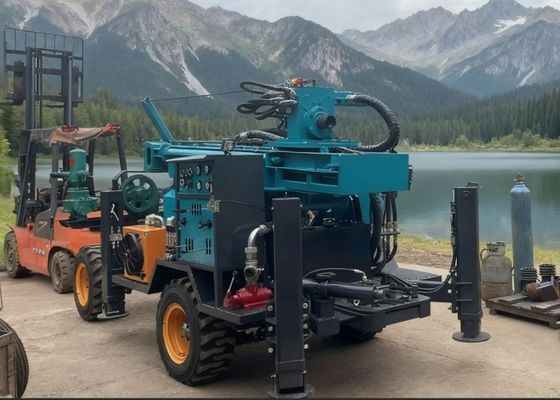

Side View
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 2
Operational View
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 3
Drilling Mechanism
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 4
Working Environment
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 5
Control Panel
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 6
Drill Bit Close-up
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 7
Full Operational Setup
